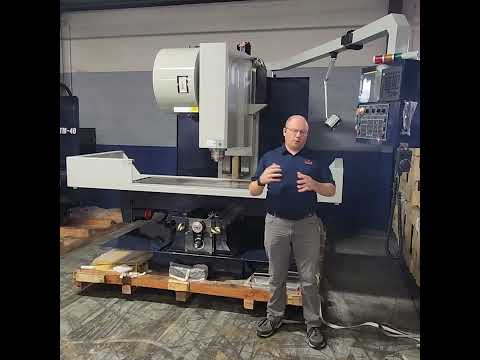

2024 Willis RTM100 Vertical Machining Center

MACHINE FEATURES
 Fanuc 0i-MF AC all digital control
 Fanuc Manual Guide I control software
 All Fanuc AC digital servo motors for each axis
 RIGID HEAD CAT#40 taper spindle
 Up to 8 000RPM spindle speed
 24 tools ATC CAT#40
 24 CAT40 retention knobs
 30” x 112” working table
 X, Y, Z Travel 98” x 33” x 26” (2500mm x 874mm x 700mm)
 2 piece column mounted vertical rear splashguards
 Chip / coolant tray for base of machine
 Table mounted splashguard
 Front and rear metal telescopic covers for bedways
 Metal telescopic cover for column ways
 Halogen working lamp
 Heat exchanger for electric cabinet
 MPG electronic handwheel for manual axis movements
 Auto lubrication pump
 Flood coolant system
 Heat exchanger for electric cabinet
 Ethernet connectivity
 RS232 port and compact flash drive
 Leveling bolts and pads
 All manuals, parts list, and inspection report

Fanuc 4 th axis ready control – does not include rotary table, servo motor, cabling,
or installation
MACHINE OPTIONS
4 th axis 10” rotary table with tailstock, servo motor, cabling and installation POR
Alternative RPM ranges available POR
Full Machine enclosure POR
Thru spindle coolant (must have full enclosure) POR
Numerous additional options POR
On site start up assistance $ 960 / day
+ expenses
