2025 MIGHTY VIPER CNC VTL-1400 Vertical Turning Lathe with Live Tools, 55" Swing, FANUC 0i-TF (NOT IN STOCK)
Have one to sell?
$395,000.00 USD
ConditionNew
1 available
New

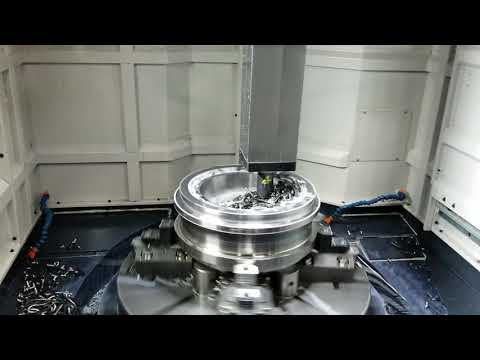

2025 MIGHTY VIPER CNC VTL-1400 Vertical Turning Lathe with Live Tools, 55" Swing, FANUC 0i-TF
Over 45 years, MIGHTY VIPER has sold more that 25,000 machine tools nationwide.
Mighty USA, established in 1981, is an American machine tool company that imports high quality machining centers manufactured to state-of-the-art specifications and built with premium components.
We are a leading machine tool seller and national machining center distributor with corporate headquarters strategically located on the west coast in Southern California.
As a core machinery company, we sell innovative machine tool technologies that help the CNC parts machining industries produce advanced tools and build complex parts.
We support our customers across North America with a network of factory partners and offices in the United States and along the Western Pacific Rim.
Mighty USA has a solid footing in the US with a service staff of over 40 professionals dedicated to providing reliable CNC machining solutions.
Ø40" 4-Jaw Manual Table Chuck
Ø55.12" Maximum Turning Diameter
Ø55.12" Maximum Swing
BigPlus BT-50 Spindle Nose
Fanuc 0i-TF Plus Control
Fanuc Manual Guide i
50 HP (30 min.) Table Motor
Milling Function and C Axis
15 HP (30 min.) Spindle Motor for Live Tool
2-Speed Gear Driven Table
7" x 7" Square Ram
12-Tool ATC (6 live, 6 static tools)
2 Tool Holders (1 OD, 1 ID)
Chip Conveyor
Full Splash Guarding
STANDARD ACCESSORIES
♦ Fanuc 0i-TF Plus Control
♦ Ø40" Independent 4-Jaw Manual Table Chuck
♦ 7"x7" Carbon Steel Ram
♦ Fixed Crossrail Structure
♦ 50 HP (30-min) Spindle Motor for Table
♦ 12-station ATC for VTL-1400
♦ 12-station ATC for VTL-1400M (6 live, 6 static)
♦ Chip Conveyor
♦ Coolant System
♦ Full Guarding
♦ Remote Manual Pulse Generator
♦ Centralized Automatic Lubrication System
♦ Absolute Encoders on all 3 Axes
♦ Tri-Color Status Light
♦ Work Light
♦ Heat Exchanger in Electrical Cabinet
♦ RS-232 Interface
♦ PCMCIA Memory Card Slot
♦ USB Port
♦ Operation Manuals And Electrical Diagrams
♦ Leveling Blocks and Bolts
OPTIONS AND UPGRADES
PERFORMANCE UPGRADE
Static Tooling (instead of live tooling and C-axis) (discount) (-) $40,000.00
Capto C6 Live Tooling System with 12-Station Tool Magazine $30,000.00
Capto C6 Live Tooling System with 40-Station Tool Magazine $50,000.00
Table Motor upgrade to 60 HP (from 50 HP) $7,500.00
Heidenhain Linear Scales on X and Z axes with 5 µm resolution $16,000.00
Tool Setter $6,000.00
Renishaw Parts Probe OMP60 with inspection software
(training not included) $13,000.00
Renishaw Parts Probe RMP60 with inspection software
(training not included) $15,500.00
Field training on parts probe $4,500.00
Manual 90° angular head; 50 taper-to-40 taper with interface (Tecnara ) $33,000.00
COOLANT THROUGH SPINDLE
Coolant through spindle pre-wire (without a high-pressure pump unit) $5,000.00
LNS ChipBlaster B30-70 high pressure pump system for coolant
through spindle function. Pressure manually adjustable up to 1000 psi,
8 gpm, 10 µm dual pleated filters, single M-code controlled outlet $14,000.00
1000 psi Coolant Through Spindle System with machine pre-wire and
LNS ChipBlaster B30-70 high pressure pump unit $19,000.00
300 psi high pressure coolant pump $6,000.00
We request 30% downpayment with the PO, 60% payment before the machine shipment from Mighty (Torrance, CA), and 10% 30 days after the machine shipment from Mighty. You can also see these terms under the “Terms and Conditions” section of the proposal.
VTL-1400 SPECIFICATIONS (IMPERIAL)
CAPACITY VTL-1400 (static) VTL-1400M(CF) (milling)
Maximum Swing Ø55.1"
Maximum Turning Diameter Ø55.1"
Maximum Turning Height 35.4"
TABLE
Table Size Ø40"
Table Load 9,900 lb
Table Motor 50 HP (60 HP opt.)
Table Speed (2-step) 1 ~ 120 / 120 ~ 400 rpm
Maximum Table Torque 7,648 lbf.ft
Maximum Cutting Force 4,662 lbf
TRAVELS
X-Axis Travel 47.2"
Z-Axis Travel 31.5"
RAM
Ram Size 7.1" x 7.1"
Minimum ID for Ram Pass Ø10.0"
AUTOMATIC TOOL CHANGER
Number of Tool Stations 12 12 (6 live - 6 static)
Tool Taper #50 (Big Plus)
Maximum Tool Length 13.7"
Maximum Tool Weight 88 lb (per tool)
1050 lb (total)
Shank Size of Static Tool 1.26" x 1.26"
Maximum Drill Diameter
(Carbon Steel Workpiece) - Ø1.6"
Maximum Tap Diameter
(Carbon Steel Workpiece) - Ø1.0"
Maximum Torque for Drilling - 145 lbf.ft
Live Spindle Motor - 15 HP
Live Spindle Speed - 2500 rpm
Table Index Speed - 3 rpm
AXIS DRIVE SYSTEM
Rapid Feedrate (X/Z Axes) 472 / 394 ipm
Servomotor (X/Z Axes) 8 / 8 HP
Ballscrew - X Axis (dia. x pitch) Ø2.0" x P0.5"
Ballscrew - Z Axis (dia. x pitch) Ø2.0" x P0.4"
Torque (X Axes) 84 lbf.ft
MISCELLANEOUS
Power Requirement (220 V) 50 kVA
Coolant Tank 130 gal
Machine Dimensions 16'8" x 11'2" x 15'3"
Machine Weight 46,300 lbs
