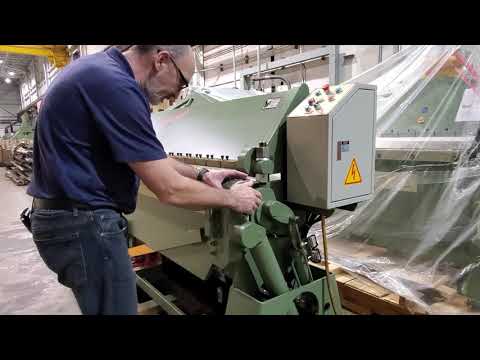

2024 CHICAGO Dreis & Krump Model HBPU 810-6 10 gauge capacity; 96" bend length.

STANDARD EQUIPMENT

Removable Nose Bars Angle Bar
Bolted Bottom Bar 1” Insert Bar
Compact Hydraulic Power Unit Oil Level Sight Gauge
Control Panel Features:
On/Off Key Selector Switch Motor Start Pushbutton
Bending Leaf Up/Down Pushbuttons Emergency Stop P/B
Clamp/Unclamp Pushbuttons Automatic Cycle P/B

ELECTRIC FOOT SWITCH – Clamps & Unclamps Top Leaf. Allows
operator mobility when loading and unloading material.

BEND ANGLE DIAL ADJUSTMENT – Adjustable cam and scale that
reads in degrees, actuates an electric limit switch for bend angle
control and repeatability of bends.

MATERIAL THICKNESS DIAL ADJUSTMENT – Reference scale for
speedier set up when adjusting clamping pressure.

BACK GAUGE – 25 ½” travel, rack & pinion type gauge with hand
wheel adjustment on right side of machine. Inch/Cm. Scale.

INCH CONTROL – Bending leaf up/down pushbuttons allow complete
operator control of the bending leaf motion.

AUTOMATIC CYCLE – Actuating the “Automatic Pushbutton” clamps
the top leaf, raises the bending leaf to the preset bend angle dial
adjustment setting, lowers the bending leaf, unclamps the top leaf.

ELECTRICAL EQUIPMENT

One 5 H.P. general purpose motor with direct mount hydraulic pump
for operation on 220/440 volts, 3 PH, 60HZ with 110 volt control
circuit (please specify voltage).
