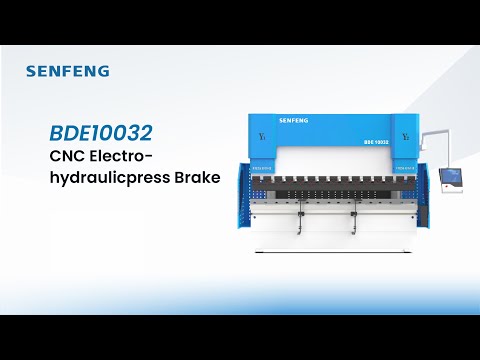

2024 SENFENG Model BDE 10032 CNC Press Brake, four primary axis (X, Y1, Y2, and R) additional axis (V, crowning by CNC), 112 US Tons
Have one to sell?
ConditionNew
1 available
New
2024 SENFENG Model BDE 10032 CNC Press Brake, four primary axis (X, Y1, Y2, and R) additional axis (V, crowning by CNC), 112 US tons
Bending thickness (Note: calculated by bending length of 3000mm) ≤ 3 mm carbon steel
≤ 2mm stainless steel ≤4.5mm aluminum
⚫ The bending machine is for bending metal sheets, especially in the field of sheet metal bending, which has a very important application;
⚫ Simple operation, high bending accuracy, and high consistency of bending workpieces, it is called a "timeless" bending machine;
⚫ The CNC bending machine has less hydraulic failures, low failures and low maintenance;
⚫ The CNC bending machine has high rigidity and high precision compensation to complete excellent bending.
Mechanical crowning (V-axis)
4 Back gauge fingers
German REXROTH hydraulic system
4+V axis CNC bending machine can control four primary axis (X, Y1, Y2, and R)
and an additional axis (V, crowning by CNC)
Options
DSP laser safety protection device （Optional）
Robotic feeding cell （Optional）
Model BDE10032
Maximum bending force 1000KN
Bending length（A） 3200mm
Side rack spacing（B） 2600mm
Throat depth（E） 400mm
Maximum cylinder stroke 200mm
The distance between the table and the upper beam（D） 480mm
Speed
Get down speed: 180mm/s
Working speed: 0-10mm/s
Return speed: 160mm/s
Main motor power 7.5kW
Dimensions（L*W*H） 3700*1595*2650 mm
Weight 6600KG
