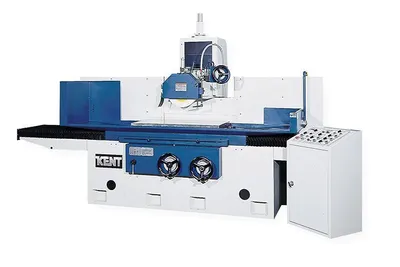

KENT INTERNATIONAL Column Traveling 510CNC3 3-Axes CNC Precision Automatic 20" x 40" Surface Grinder

Description

KENT INTERNATIONAL Column Traveling 510CNC3 3-Axes CNC Precision Automatic 20" x 40" Surface Grinder
3-Axes Linear Guide Ways; 3-Axes Ballscrew and Servo Motor Driven, Fanuc 0iM CNC Control;
Column Traveling Crossfeed; Auto Lub.
With: 20”x40” Electro Magnetic Chuck; Halogen Work Light;
Paper Filter & Magnetic Separator Coolant System; Enclosure Guarding (Pic. 1);
Fully Automatic Cycle; Manual Pulse Generator; Spindle Motor Inverter for Variable Spindle RPM

The working table executes only longitudinal movements. Double V guide-ways are laminated with Turcite-B hand scraped to obtain smooth stick-slip free movements.
The column carries out only crossfeed movements. The column slide is guided by roller linear guides, with high precision ball-screws and driven by servo motor.
The spindle housing carries out only vertical movements. The Y-axis is also guided by roller linear guides, with high precision ball-screws and driven by servo motor.
The flanged cartridge type spindle is supported by 3 pairs of Class 7 (CP4) super precision angular contact ball bearings, preloaded and select-fitted into spindle cartridge.
The dresser is mounted on right side of table.
The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
Standard oil cooler unit for hydraulic system. Prevents temperature rises and thermal deformation is reduced to a minimum.
An independent control box with an ergonomically designed panel offers a comfortable and convenient operation environment.
Control available in Fanuc, Siemens, Mitsubishi and Heidenhain.
Sizes available from ( 400~800 )mm by ( 800~2000)mm.

KENT Industrial Co., Ltd. was built in 1966 with President Mr. C.S. Lu in Taiwan. Today, our company covers over 12,000 square meters and includes 200 staff members. Our main products are: surface grinders, CNC surface grinders, creep feed grinders, double column surface grinders, vertical machining centers, and double column machining centers.
KENT Industrial Co., Ltd. sells machine tools worldwide to countries such as Brazil, Canada, England, France, Germany, Italy, India, Japan, Poland, Spain, USA and so on.
KENT America office was opened in California, United States in 1979. Now, KENT International USA, Inc. is serving our customers in North and South America with excellent products and service.
