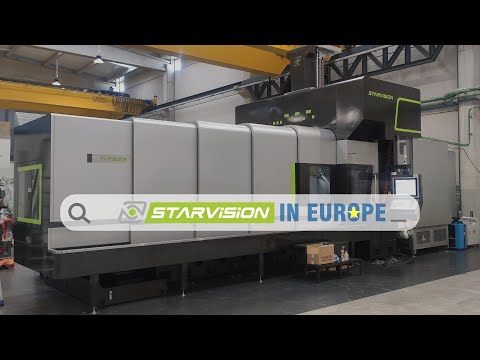

2023 STARVISION CNC Bridge Mill Model DX-3220 126” x 78.74” x 31.5” + 7.87" taller column
Have one to sell?
ConditionNew
1 available
New
2023 STARVISION CNC Bridge Mill Model DX-3220 126” x 78.74” x 31.5” + 7.87" taller column
DX Series is built for efficiency, featuring both high speed and accuracy. With SCHNEEBERGER linear guides, & HEIDENHAIN linear scales. way design which can achieve a long service life with high accuracy, DX Series is your perfect solution for efficient machining and fast cutting. Linear Guideways.
Starvision carries 20 years of professional experience in R&D, assembly, quality control and marketing Double Column Machining Center.
In 2008, we have signed a technical cooperation agreement with well-known German turning machine manufacturer A. Monforts Werkzeugmaschinen GmbH and arranged an off-site training in Monforts Germany.
Starvision team integrates advanced technology and strict attitude into our own products. We set ourselves very high standards and always keep up constant know-how exchanges and innovations. These not only enhance our own technology but also strengthen our faith and passion to machine tool industry.
126” x 78.74” x 31.5” + 7.87”/200mm taller column, CT-50 6000 RPM 2 step gear Drive Spindle Motor, 50/40 HP, CTS 300 psi, 32 tool ATC Augers, 4th axis prep, AC cabinet, Data server, 2gb CF, Fanuc 0i-MF, W/MGI, USA delivery January 2024
DX-2216/20 DX-2716/20 DX-3216/20
Travel
X axis mm 2,200 2,700 3,200
Y axis mm 1,600 / 2,000
Z axis mm 800(1,000-opt.)
Distance from spindle nose to table mm 150-950 (150-1,150-opt.)
Distance between two column mm 1,700(1,650) / 2,100(2,050)
Working table
Table Length mm 2,000 2,500 3,000
Table Width mm 1,400 / 1,700
Table Load kg 8,000 9,000 10,000
T- Slot (Width x Number x Pitch) mm 22x7x180 / 22x9x180
Spindle
Spindle Taper - BT-50 / ISO-50 / CAT-50
Spindle Speed rpm 4,500(6,000-opt.)
Spindle motor(cont./30 minutes rated) kw 18.5 (22-opt.)
Feed
Rapid Traverse(X/Y/Z) m/min 24 / 24(20) / 15
Cutting feedrate mm/min 7,000
Accuracy
Positioning Accuracy mm ±0.005 / 300 ; ±0.015 / Full travel
mm P0.03 P0.035
Repeatability mm ±0.003
mm Ps0.025 P0.028
ATC
Tool magazine capacity pcs 32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty) mm Ø125/245
Max. tool length mm 350
Max. tool weight kg 20
Others
Power required kva 65 65 65
Pneumatic input pressure kg/cm2 6.5
Machine net weight tons 19 / 21 21 / 23 23 / 259
Floor space (LxWxH) m 8.4x5.1(5.5)x4.7 9.4x5.1(5.5)x4.7 10.4x5.1(5.5)x4.7
