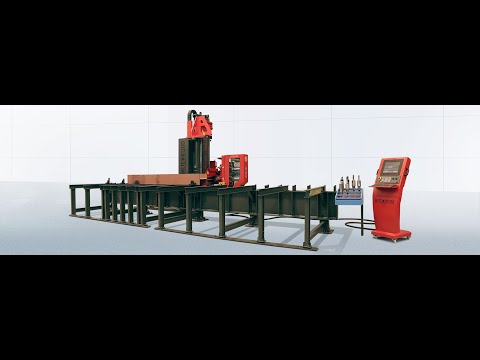

AKYAPAK Single Spindle Beam Drill Line Model Meteor 1200
The METEOR-1200 is developed to drill holes in various kinds of profiles faster with ease. It is the
most space efficient drill line model and ideal for small-mid sized fabricators. The METEOR process
various steel profiles including beams, angles, flat sheets and any suitable geometries. It also
performs milling for slots, pockets with its advanced control system. The METEOR is also
equipped with sub-axis that allows to control the spindle within 10" horizontally without moving the
body.
✓ Fast return on investment
✓ High versatility in small footprint
✓ Fully CNC
✓ 20 HP spindle motor power
✓ 6-station automatic tool changer
✓ Fast, accurate and maintenance-free
✓ LASER automatic tool measurement & material zero referencing
✓ High positioning tolerance and repeatability
✓ Very robust design
✓ Worldwide spare parts availability
✓ User friendly interface on the control unit
✓ 20, 33, 46, 59, 72, 85 feet long table configurations
STANDARD MACHINE EQUIPPED WITH
▪ METEOR 1200 SINGLE HEAD CNC DRILL LINE
▪ 46 feet table
▪ BT40 tool holder
▪ Automatic tool changer with 6 stations
▪ Automatic tool and material measurement
▪ Auto-lubrication system
▪ MQL (Minimum Quantity Lubrication)
▪ Remote control
▪ Mobile control panel
▪ Siemens Simotion control system
▪ Meteor Controller® Programming Software
▪ DSTV file import
OPTIONAL FEATURES AND ACCESSORIES
Unit Price
MQL Lubricant – 5 L $140
Initial Drilling Package* – Strongly Recommended $4,500
Scribe Marking Tool - 20.000 rpm with air motor $6,500
Scribe Marking Tool - @Spindle speed $1,400
Air hydraulic oil cooler $600
Hydraulic oil heater $600
DRILL UNIT
Drill diameter - Ø inch 3/16 – 1-9/16 (Carbide)
Drill Holder BT40 or ISO40*
Tapping inch 1/4 to 1-3/16 (M6-M30)
Max. tool length inch 12.6
Spindle power HP 20
Spindle speed rpm 0 – 3000 stepless
Spindle torque ft.lbf 141 @750 rpm
Total power HP 60
SIZE
Working length feet 46 ́
Beam height inch 2 – 47
Beam width inch 2 – 47
Support table height inch 39.4
Total length feet Working length + 10.6 feet
Total height inch 124
Total width inch 118
Total weight lbs Depends on the working length
POSITIONING ACCURACY
X-axis (Longitudinal) inch +/- 0.01
Y-axis (Spindle up and down) inch +/- 0.002
Z-axis (Spindle forward and backward) inch +/- 0.002
