FOURSTAR Fixed Double Column Ganty Machining Center, Model FD-1842
Gantry Machining Centers (incld. Bridge & Double Column)

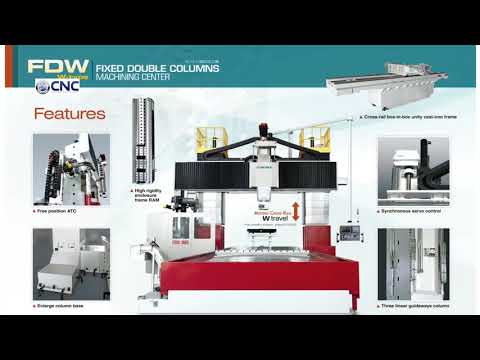

FOURSTAR Fixed Double Column Ganty Machining Center, Model FD-1842
YONG JU (Y.J.) PRECISION TECHNOLOGY CO.,LTD. is located at Taichung, Taiwan that established by several technician and expertise who deeply loves research, development and challenge in this field.
Our specialized main products are CNC double column machining center.
Our build FOUR-STAR : excellent, confident, intellect, service on enterprise spirit.
FOUR-STAR represent excellent, confident, intellect, service. We provide our products and service with variety, humanity & optimization within enterprise life extended by its customers absolutely satisfaction. Cooperate with Japan premium company for developing all type high speed high precision double column machining centers to afford allcustomer over world.
Standard accessories :
FANUC 0iMF + 10.4"LCD
GTP 2G250 H/L gearbox
1. Spindle cooler l
2. Spindle air blast
3. Cutting coolant system
4. Auto lubrication system
5. Program end alarm light
6. Rigid tapping
7. Electrical cabinet heat exchanger
8. USB/RJ-45/Ethernet interface
9. N2 counter balancing system
10. Air/water cleaning equipment
11. Dual screw type chip remover
12. Steel-belt type chip conveyor with cart
13. Operator's manua
14. Working lamp
15. Tools kit
16. ATC auto door
17. Foot switch for tool released
18. X /Y /Z axis with ball screw
19. X /Y /Z axis linear guideway
20. Semi enclosure splash guard
21. X axis telescopic cover+Y axis Javara cover
22. Operator monitor+MPG bolts
23. Base leveling screw & foundation
Optional accessories :
1) CTS 20-40 bar for main spindle $5,720.00
2) Semi enclosure splash guard → Full enclosure splash guard $8,970.00
Total Options $14,690.00
Optional Accessories
Mitsubishi/Siemens/Heidenhain
Direct drive spindle(8000~15000rpm)
Buit-in Spindle(15000~24000rpm)
Spindle with CTS
Gearbox with CTS
90° head(Auto, Semi, Manual)
Extend head (Auto, Manual)
AC swiveling head (Auto, Manual)
AHC system (for auto head)
Toggle head stand (for semi/manual head)
Five face head (Fixed type)
Universal head (Fixed type, Manual)
Y travel extend 650mm
Transformer
X, Y, Z axis linear scale
Tool length measurement
Auto work piece measurment
CNC rotary (index) table
Coolant thru tool holder device
Full enclosure splash guard
Oil skimmer
Power 30/37kW + GTP 2G300(4500rpm)
Heavy duty RAM 550 x 550(above FD-28)
Heavy duty RAM 650 x 650(above FD-42)
1) Warranty : In normal operation, 12 months mechanical parts and 24 months CNC controller after shipment from our factory. Replacing non-artificial damaged parts during warranty period will need to return the damaged parts or provide photo.
2) Acceptive test before shipment at FOUR-STAR factory according to FOUR-STAR standard. Excluding heavy cutting and Turn-key application.
FD-1842 Fixed Double Columns Machining Center
X /Y /Z travel： 4200/165.35" /1800/70.87" /800 mm
Distance between columns : 1800mm(without splash guard)
Table size: 4000mm/157.48"×1500mm/59.06"
Ram size: 450/17.72"*400mm/15.75" (4 guide way)
Spindle： CAT-50, 6000rpm, 22/26kW, gearbox 1:4
Spindle nose to table: 120/4.72"-920mm/36.22" (confirmed by drawing) Controller: Fanuc 0iMF PLUS+10.4"LCD Cutting feedrate: 7 m/min
Rapid feedrate: 10/18/15 m/min
ATC Capcity : Arm type 24T
Diameter / tool weight Max: Φ110(full tools); Φ220(Adjacent)/ 18Kg / 380mm
Maximum table load： 18 ton/36,000 LBS
Machine size L/W/H (approx)： 11.1/4.5/4.5m
Machine weight (approx) 33 ton/66,600 LBS
