Remanufactured FERMAT WHN 13 P, Arrives April 2023. $599,000 Delivered, Installed, Warranty.
Have one to sell?
ConditionNew
1 available
New
Remanufactured FERMAT WHN 13 P, Arrives April 2023 $599,000 Delivered, Installed, Warranty.

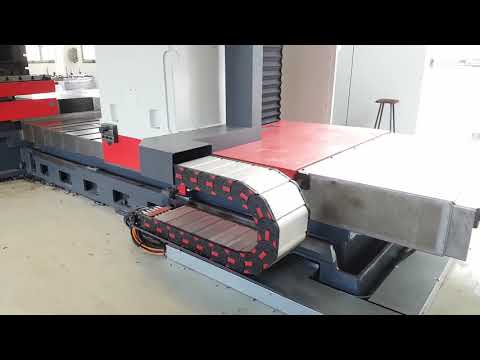

The machine is complete overhauled and modernized. The machine has a modern headstock 3000 rev./minute and a new X bed, slides and table – headstock, X bed, slides and table are made by Fermat.
After the overhaul the machine will be controlled in all X,Y,Z,B axes continuously and will comply with all requirements of CNC controlled machine with the possibility of circular interpolation, screw interpolation, spatial interpolation – curve in a space and linear interpolation in 4 axes.
Geometric protocol, warranty, CE confirmation, operating instructions and all necessary documents.
The exact content of the overhaul will be precisely specified in the sales contract.
Standard accessories, units
Electrical cabinet with air-condition unit
Automatic surface oil greasing system
Hydraulic unit
Cooling unit for spindle bearings and their thermal conditioning
Service equipment
Remote diagnostics – prepared in electrical cabinet (connection done by customer)
Work lights
inside operator cabin, top light from column top cover
Operator safety
Operator cabin with integrated CNC panel
Diameter of working spindle 130 mm
Travel X-axis 3500 mm
Travel Y-axis 2000 mm
Spindle speed 10 - 3000 /min.
Cooling through spindle YES
Pressure of cooling 20 bar
Spindle travel - W axis 730 mm
Travel Z-axis 1250 mm
Tool magazine NO
Spindle taper ISO 50 .
Clamping area of table 1800 x 1600 mm
Max. weight of workpiece 12000 kg
Main motor power FANUC 37 kW
Machine dimensions l x w x h 7200 x 7600 x 4900 mm
Machine weight 35000 kg
Total input 80 kVA
CNC control system FANUC FS 0i-MF Plus
Hand wheel for CNC system HMOP type B
Control panel
Vertical panel with integrated keyboard and 15" LCD
CNC rotary table (size, design, load) 1800x1600 mm with one pinion and servo motor
12 tons max load, absolute angular measuring and B axis encoder
Linear scales FAGOR, linear absolute for X, Y, Z axes
