KENT Int'l 12" x 24" 3 Axes Automatic Model Surface Grinder KGS-63WM1 w/Servo Down Feed
Have one to sell?
ConditionNew
1 available
New

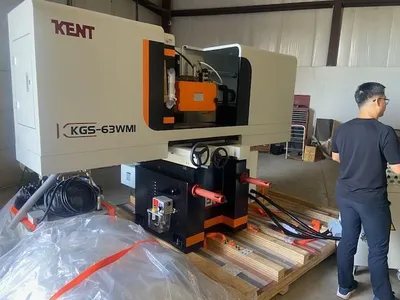

KENT Int'l 12" x 24" 3 Axes Automatic Model Surface Grinder KGS-63WM1 w/Servo Down Feed
Introducing the KENT International USA 3 Axes Precision Surface Grinder KGS-63WM1. The KENT Wizard Series features: 1). WM1 (servo down feed controller) and 2). WM2 (servo down feed and cross feed controller). It offers a Mitsubishi PLC with a touch screen to set grinding variables. It has the servo motor and ball screw combination. The control also has a Manual Pulse Generator allowing the operator to "dial in" the precise setting to a 0.001" increment. Wheel dressing is also done by AC servo motor. This 2023 model reciprocating surface grinder is brand new and is equipped with a 12"x24" electric magnetic chuck with KENT Chuck control. It comes with standard equipment including wheel balancing base and arbor, a grinding wheel, Wheel flange, table dresser, and a Tool Box with a set of tools. Perfect for every specialized workshop.
FEATURES & CAPABILITY
Longitudinal on V-flat scraped guideways
Saddle traveling crossfeed
Motorized rapid elevation
Spindle motor frequency inverter *Optional
Hydraulic oil chiller *Optional
Full enclosure *Optional
Overhead hydraulic wheel dresser
Variable spindle speed *Optional
Surface grinding
Plunge grinding
MODEL KGS-63WM
OPTIONS
Magnetic Separator & Paper Filter Coolant System (M2)
Digital Read Out System
DRO Installation & Display Arm & Tray, Mounting Bracket
Fine Pole Electromagnetic Chuck
Extra Wheel Flange
Table Splash Guard(Rear)
Full Enclosure Guarding
Spindle Motor Frequency Inverter for Variable RPM
Hydraulic Oil Chiller
Standard Equipment
Double V Turcite Table Ways
Double –V Turcite Cross Ways
Auto Lube
Control Axis with Ballscrew & Servo Motor Driven
Console Built -In Variable Power Chuck Control
12” x 24” Electro-Magnetic Chuck with Console Built in Chuck Control
Magnetic Separator & Coolant System
Full Length Rear Splash Guard
Two Front Table Splash Guard
Over Head Parallel Dresser
Fully Automatic Cycle with Rough & Fine Feeding & Spark-Out Time
Retract Distance Setting PLC Cross Feed
Console Setting Cross Feed Travel
Control Axis with Manual Pulse Generator
New Mitsubishi Control & Touch Screen Technology
Wheel Balancing Base
Grinding Wheel
Table Dresser
Wheel Balancing Arbor
Wheel Flange
Tool Box & Tools
New Style Enclosure Package
12″ x 24″ New Kent Surface Grinder Model KGS-63WM1 Optional Accessories
Magnetic Separator & Paper Filter Coolant System (M2) $3500.00
“SONY” Single Axis DRO System LH70-1+GB40ER (WM1 Crossfeed Axis) $1935.00
DRO Installation & Display Arm & Tray, Mounting Bracket (One Axis) $400.00
Extra Wheel Flange $220.00
Table Splash Guard (Rear) $80.00
Specification Unit KGS-63WM Series
Capacity
Overall table working area INCH 12 x 24
Longitudinal table travel INCH 28
Crossfeed table travel INCH 13.5
Distance spindle center to table INCH 24
Grinding Wheel
Wheel dimension (Dia. x W x Bore) INCH 14 x 1.5 or 2 x 5
Spindle speed RPM 1,740
Vertical Movement
Vertical on MPG / Handwheel 1 gra INCH 0.00005
Vertical on MPG / Handwheel 1 rev INCH 0.005
Auto downfeed increment INCH 0.00005-0.01
Motor
Spindle motor HP 7.5
Dimension & Weight
Machine height INCH 72
Floor space INCH 102 x 99
Net weight LBS 3,850
Gross weight LBS 4,290
Chuck Size 12″ x 24″
Max. Travel (Longitudinal x Cross) 27-15/16″ x 13-3/8″
Max. Distance-Spindle Center to Table 21-5/8″
Rough Cutting Downfeed Increment 0-0.0099″
Fine Cutting Downfeed Increment 0-0.0099″
Spark-out Times 0-9 Times
