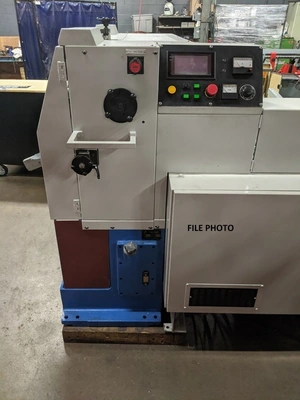

Rebuilt 2003 TSUNE CNC Cold Saw Model TKSC 101GL, 4.3"Capacity, with Barfeed

Capacity .6" to 4.33" Steel
Carbide cap. Solid steel .98" to 3"
Capacity cutting round tube 5.12"
Square tube .6" to 4.33"
Carbide saw diameter 360mm/ 14"
HSS saw diameter 420mm/16.5"
Saw head feed type Hydraulic
Material feed one stroke 24"
Shortest cut off (Part length) .4"
Remnant length 3.3"
Blade speeds 12-120 RPM
Loading magazine Incline type
max bar length 20'
Main Saw motor 15 HP
Coolant tank capacity 38 Gallons
Operating Dimensions 305" x 84" x 76" High
Weight 7,850 Lbs.
Shipping Dimensions
machine = 8' 6" x 7' x 6' high
barfeed = 15' x 5' x 4' 6" high
Rebuilding Process:

We take note of any missing or failing parts and place orders for replacement parts that meet or exceed OEM standards.
Once the machine passes inspection on steps 1-5, MTC begins disassembly.
All guards are removed and inspected for wear or cracks.
All way covers are removed and ways and covers inspected for wear or tear.
Machine oil is drained, cleaned and replaced with new oil to proper levels and condition.
All vices, chucks, and other mechanical control items are removed, cleaned and inspected.
The machine is thoroughly cleaned using steam, degreasers, and solvents.
The hydraulic system is tested for noise.
The hydraulic system pressure is tested for proper settings.
The hydraulic system couplings are examined and aligned as needed.
The hydraulic system hoses are inspected and replaced as needed.
The hydraulic system valves are inspected and tested for proper function.
Electrical system wires are cleaned and examined for damage or wear, replaced as needed.
Electrical system switches are cleaned and inspected for damage or wear, replaced as needed.
Electrical system controls are cleaned and inspected for damage or wear, replaced as needed.
The electrical system cabinet is examined and cleaned.
Worn and failing elements of the hydraulic and electrical systems are replaced as necessary.
Bearings are inspected for proper function and measured for play.
Bearings are replaced as necessary.
Motors are inspected and rebuilt or replaced as necessary.
Motor couplings are removed, cleaned, and examined for wear and failure, replaced as necessary.
Belts are inspected for wear, cracks, and fraying and replaced as necessary.
Belts are inspected for proper alignment.
Gearboxes are cleaned and inspected.
Oil is drained from gearbox.
Gearboxes are refilled with proper oil to correct levels.
Chip conveyors are cleaned and inspected for wear.
Coolant systems are cleaned and inspected.
Worn and failing elements of the gearbox, conveyor, and coolant systems are inspected and replaced as necessary.
Hydraulic fluid is drained and replaced to proper levels in hydraulic system.
All filters are removed and cleaned or replaced.
Sheet metal is cleaned and inspected for wear and failure.
Safety switches are cleaned and tested for proper function.
Safety switches are replaced as necessary.
Machine is inspected to ensure steps 1-38 have been properly completed.
Unit approved for painting.
All previously painted surfaces are prepped and primed.
All primed surfaces are given 2 coats of industrial grade paint.
All systems are reassembled to complete the machine.
All buttons and switches on control works are inspected for wear and functionality.
Machine functions are tested for performance.
Machine is operated in full automatic mode.
Test cuts are completed and examined for accuracy.
If unit passes tests in steps 44-47, machine is calibrated.
A video of the machine is recorded.
Machine is prepped for proper shipping, tied down, Wrapped, etc.
Machine is given a 180-day Warranty.
There are many more items checked and repaired
