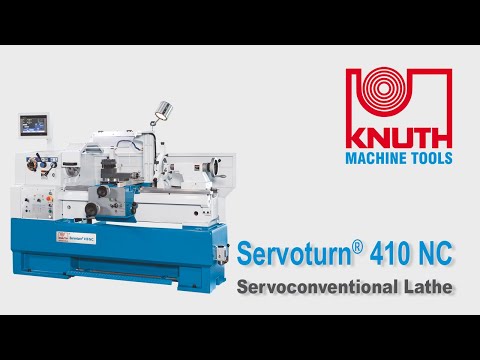

KNUTH model Servoturn 410 NC Conversational engine lathe with Delta servocontrol

STANDARD EQUIPMENT
tandard Equipment

Delta servoconventional CNC control
Fixed splash guard (wall)
Chuck guard
Protective shield for support
Steady rest
Follow rest
Coolant system
Leadscrew cover
Work lamp
Manual central lubrication
4-station tool holder
Fastening bolts
Operator instructions

Delta servoconventional CNC control, includes fixed splash guard (wall), chuck guard, protective shield for support, steady rest, follow rest, coolant system, leadscrew cover, work lamp, manual central lubrication, 4-station tool holder, fastening bolts, operator manual

A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
Wide, hardened and ground guideways ensure superior turning results and long life
Removable bridge allows machining of workpieces with larger diameters
The massive headstock is equipped with a large main spindle that runs on two high-capacity tapered roller bearings and one grooved ball bearing
The main drive features a wide speed range with 12 gear steps that easily can be selected via shifting
Feeds, thread types, and contours are designed simply and intuitively with electronic selection via a headstock-mounted rotary switch
In addition to standard machining tasks with extensive thread options, this machine can be used for turning tapers and radii
Values for travel distances, feed speeds, and thread leads are input via touchscreen at the control
Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
Ball screws in Z and X axes ensure considerably less errors due to loseness (backlash), resulting in significantly higher precision
A manual central lubrication system simplifies maintenance and supplies all guideways with lubricant
delta servoconventional CNC control
fixed splash guard (wall)
chuck guard
protective shield for support
steady rest
