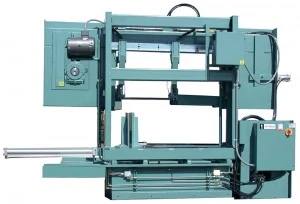

W.F. WELLS Horizontal bandsaw Model B-25-1 25" x 40" 7.5 HP
Have one to sell?
ConditionNew
1 available
New
W.F. WELLS Horizontal bandsaw Model B-25-1 25" x 40" 7.5 HP
W.F. Wells, Inc is unique in the U.S. machine tool industry in that it has continued to manufacture its products in the U.S.A. while so many others are importing what they sell. W.F. Wells, Inc provides bandsaws that handle the requirements of the metal cutting industry but also non-ferrous products such as glass, ceramics, graphite, crystals and wooden products. It is this versatility that has allowed us to expand in an ever-changing market.
Optional Accessories
Discharge Worktable 40″ W x 56″ L
Hydraulic Holddown, Saw Vise
Hydraulic Chip Conveyor
Blade Break/Stall Switch
Non-Powered Conveyor, 40″ X 5′
Non-Powered Conveyor, 40″ X 10′
Hydraulic Powered Conveyor, 40″ X 10′
High Speed Drive & Guides (1¼” Blade) 500-3000 SFPM
Machine Specifications
Capacity: Rectangular at 90° 25″ High X 40″ Wide, Round 25.5″ Diameter
Rectangular at 45° 25″ High X 24″ Wide, Round at 45° 24″ Diameter
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 22′-6″
Blade Guide: Carbide Blocks with Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 28″
Outfeed Table: 24’ X 40”
Blade Tension Indicator
Electronic Door Interlocks
Shipping Weight: 5,800 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 161″ Length x 52″ Width x 100″ Height
