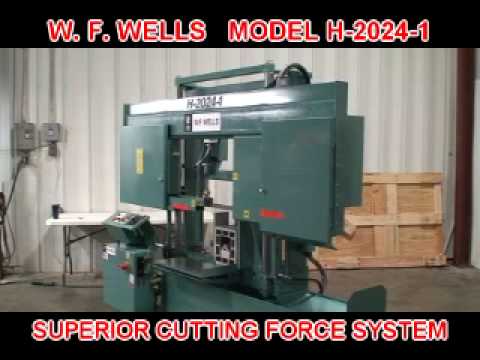

W F WELLS Model H-2024-1 Horizontal Twin Column Bandsaw 20" x 24" Capacity
Have one to sell?
ConditionNew
1 available
New
W F WELLS Model H-2024-1 Horizontal Twin Column Bandsaw 20" x 24" Capacity made in the USA.
W.F. Wells, Inc is unique in the U.S. machine tool industry in that it has continued to manufacture its products in the U.S.A. while so many others are importing what they sell. W.F. Wells, Inc provides bandsaws that handle the requirements of the metal cutting industry but also non-ferrous products such as glass, ceramics, graphite, crystals and wooden products. It is this versatility that has allowed us to expand in an ever-changing market.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Manual Length Stop Assembly 0056707 $475.00
Discharge Worktable, 20” W X 48” L with Stock Stop 0056041 $3,050.00
Discharge Worktable, 24” W X 48” L with Stock Stop 0053230 $3,675.00
Work Light, Wired In 0052021 $375.00
Air Vise, with Holddown combined 0056787 $5,575.00
Air Vise, Manual 0056789 $3,250.00
Blade Break/Stall Switch 0056040 $675.00
Electronic Chip Conveyor, Auger Style 0053231 $5,475.00
High Speed Drive & Guides (1” Blade) 400-3000 SFPM 0056699 $7,950.00
Free Standing Roller Stock Conveyors, 6” Centers
21”X 5' X 5,000 lbs. Cap. Distributed Weight 0050247 $1,850.00
21” X 10' X 10,000 lbs. Cap. Distributed Weight 0050250 $2,875.00
24” X 5’ X 5,000 lbs. Cap. Distributed Weight 0050267 $3,250.00
24” X 10’ X 10,000 lbs. Cap. Distributed Weight 0050268 $4,250.00
Electric Powered Conveyor 24” x 10’ 0010749 $11,875.00
Capacity: Rectangular at 90º 20” High x 24” Wide, Round at 90º 20” Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042” X 17′ -8″
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Manual with Indicator
Bandwheel Size: 20”
Vise: Manual, 15”
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: ¾ Gallon
Hydraulic Drive: ⅓ HP Motor
Work Height: 26”
Shipping Weight: 2,800 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Shipping Dimensions: 101”L x 40”W x 86”H
