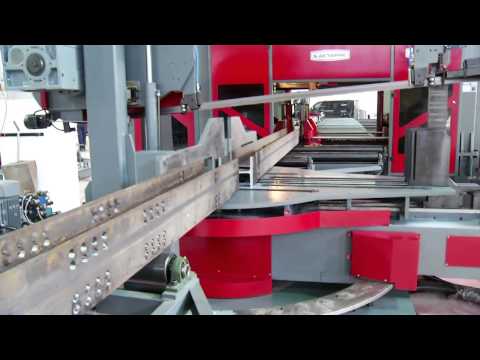

AKYAPAK Model 3ADM 1200 Beam & 3 Spindle CNC Drill Line
Have one to sell?
ConditionNew
1 available
New
Introducing the brand-new 2022 AKYAPAK 3ADM 1200 Beam & 3 Spindle CNC Drill Line. Impressive power at 15 hp and RPM of up to 4,500. It boasts a Mitsubishi Controller with accelerated communication speed, inter-CPU shared memory, and up to 16 axes. This machine's operating range varies from a minimum of 7.87" x 3.15" to a maximum of 47.24" x 19.69", with drill diameters from 10 - 50 mm. It's sleek, efficient, and ready to contribute to you achieving peak production levels. Optional additions include a mitering bandsaw for $100,000.
Mitsubishi Controller
Key Features
• Accelerated communication speed over the inter-CPU shared memory
• Up to 16 axes with 4 simultaneously controlled axes per CPU, 2 CPUs per system
• 16.8k Block/min processing speed
• Streamlined production with reduced Tact Time and host information system linkage
• Uses GOT1000 HMI and iQ rack-based I/O card interfaces
• SSCNETIII benefits, including noise free, 50Mbps, fiber optic communication.
• Mitsubishi Touch Screen

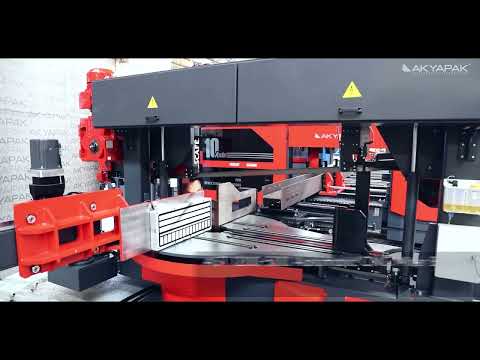

OPTIONAL: Mitering Bandsaw $100,000.00
AST-1200 Band saw: AST-1200
Main Saw Motor kW 11
Mitering Servo Motor kW 1.5
Brush Motor kW 0.12
Coolant Oil Pump (opt) kW 0.12
Hydraulic Pump kW 5.5
Bandsaw length mm 9010
Blade type Lenox Armor Rx+ 54x1,6 TPI:2/3
(Bi-Metal)
Cutting Speed m/min 0.4
Length x Width x Height mm 4740x2350x2500
Working Height mm 800
Weight kg 6680
Mitering angle ° +60°/-45°
Sawing Capacity max. (WxH) mm 1200x500
Sawing Capacity min. (WxH) mm 65x45
Controller Mitsubishi
Operating Range Min. 7.87" x 3.15"
Max. 47.24" x 19.69"
Drilling Units 3
Drill Diameter mm 10 – 40 (Carbide and U-drill)
40 – 50 (U-drill only)
Thread Tapping M12 – M24
Drill Holder BT40
Spindle Speed rpm 50 – 3000 stepless
Spindle Power HP 30
Spindle Torque Nm 280
Tool Changer 3 x 4
Weight per linear meter kg/m 600
Spindle positioning speed / returning speed m/min 15
Machine Weight 28,600
CAPACITIES
ANGLE
minimum inch 3.15” x 3.15” x 1/3”
maximum inch 9.84” x 9.84”x 1.1”
U CHANNEL
minimum inch 3.15”x1.77”x 1/4”
maximum inch 15.74“ x 4.33“ x 0.55“
HEA
minimum inch 3.77”x3.93”x0.19”
maximum inch 38.9”x11.8”x0.64”
HEB
minimum inch 3.93“x3.93“x ¼“
maximum inch 39.3“x11.8“x0.74“
HEM
minimum inch 4.7“x4.1“0.47“
maximum inch 39.6“x11.8“x0.82“
H WELDED
PROFILE
maximum inch 49.2”x19.68”x2”
IPE
minimum inch 3.14”x1.81”x0.14”
maximum inch 30.3”x10.5”x0.61”
IPN
minimum inch 3.14”x1.65”x0.15”
maximum inch 21.6”x 7.87”x 0.74”
