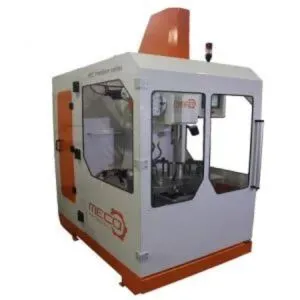

MECO Keyseter MODEL MEC-70 / 340 x 600 CNC Premium 13.3" vertical stroke 3.94" keyway width
Have one to sell?
$88,200.00 USD
ConditionNew
1 available
New
MECO Keyseter MODEL MEC-70 / 340 x 600 CNC Premium 13.3" vertical stroke 3.94" keyway width
3 AUTOMATIC AXES. Thanks to the electronic control systems of last generation that have been incorporated in this model for its three axes is achieved greater precision and a higher degree of automation. The machine can work in automatic mode, so that the operator can simply handle replace the part once the machine has finished the process of pre-programmed machining. Undoubtedly, the MECO broaching machines are designed to increase the production capacity of our customers.
Standard Equipment

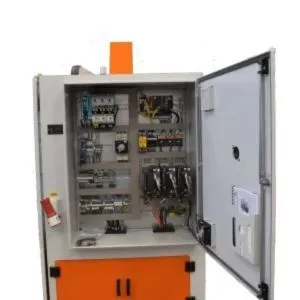

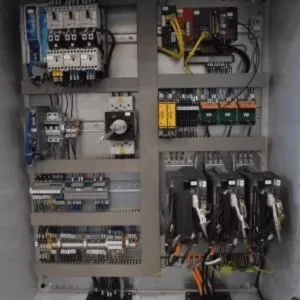

Complete Electrical Panel UL Approved
Siemens and Omron Electrical Components

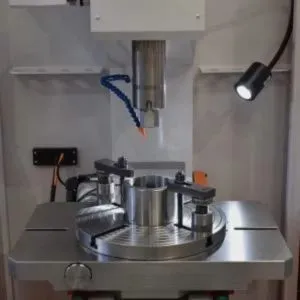

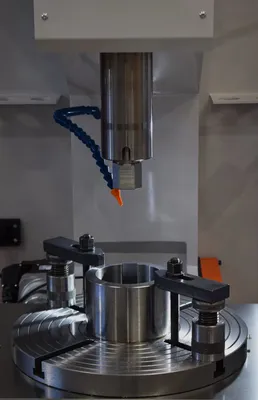

14-1/8” Built-In Rotary Table
360 Degree Rotary Scale
Upper and Lower Adjustable Stroke Limits
Cutter Retract During Upstroke
Electrically Interlocked Safety Guards
Omron Mitsubishi PLC
Model MEC70-340x600 CNC Version
Brake motor is replaced with servo motor NC control of cutter stroke and servo motor NC control of table infeed increment and depth, program storage of 10 jobs, programmable safety clearances for stroke and table, programmable cutter retract during non-cutting up stroke, UL approved electrical panel, Omron PLC, wired for 220V or 440V/60Hz/3Ph operation
RECOMMENDED OPTION: UL MEC-80 Adaptation.............................$6,600.00
Highly Recommended Option
Centering fixture spring loaded ...........................................................$ 709.00
Lower guide/support for long keyways (note: requires special holder for use with lower guide) ............................................................................................................... $1,743.00
Interchangeable inserts for lower guide .............................................$ 267.00
Excluding transportation cost EX factory
The centering fixture is highly recommended for centering on a I.D. bore during set-up. The lower guide for very long slotting. The cutters are paired with individual toolholders by size. Special for longer centers or special widths are the same price as normal cutters. Special toolholders are 35% higher.
A(Maximum Width with doors open): 57.09"
B (Maximum Depth of the machine): 47.52"
C (Maximum Higher of the machine): 84.25"
D (Maximum diameter of the sample): 23.62"
E (Total working area): 12.20"
(Machine Weight): 2,420 lbs
Z stroke: 14.84"
