SMB ST-50 CNC LATHE CAPACITY 17"

Description

SMB ST-250 CNC LATHE
CAPACITY 17"

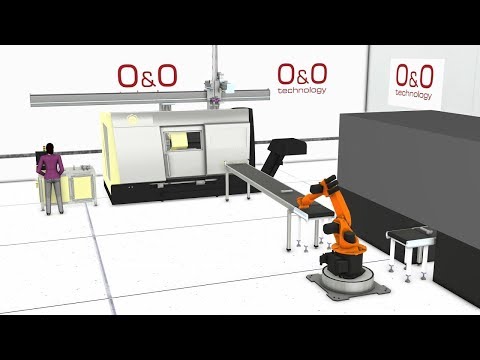

SMB has produced a new lathe which completely satisfies the demands in the field of mass production machining. We have also made the body smaller to save space which help to increase the productivity per unit area. With integrated gantry loader, ST – 250 also provides high speed productivity.

MACHINE FEATURES
• Servo Turret with 12 Tools
• 300 mm Turning Length,
• Integrated Gantry Loader,
• Pre-tensioned X, Z Ball Screw,
• Roller Type LM Guide
• Separate Coolant Tank,
• A2-6 Main Spindle,
• Monoblock 30° Machine Bed,

GANTRY LOADER FEATURES
• Integrated Top Of The Machine,
• Low Foot Print Because Of Top Assembly,
• Unique Gantry Loader Door,
• Not Necessary To Open Front Door For Loading & Unloading,
• Maximum Safety Thanks To Integrated Feeder Cabinet,
• All Axis are Actuated By Servo Motors

BASIC MACHINE STANDARD ACESSORIES

1. Fanuc CNC Unit ,
2. 8” Hydraulic Chuck ,
3. 300 mm Turning Length,
4. Ø 49 mm Bar Capacity,
5. Servo Turret with 12 Tools,
6. VDI 30 ID and OD Tool Holders,
7. Graphic Screen,
8. 3 – Axis Gantry Loader,
9. MK – 4 Hydraulic Tailstock,
Standard Linear Guideways
Type : Roller Type,
Brand: SCHNEEBERGER MRW 35
Made in Germany
Standard Ball Screws
Brand: Bliss
Type : Ø40x10 mm
Accuracy Class : C1~C3

BASIC MACHINE OPTIONAL ACCESSORIES
1. Siemens CNC Unit,
2. C Axis,
3. Bar Feeder,
4. Linear Ruler for all axis ,
5. Tool Presetter ,
6. Sub Spindle ,
7. Chip Conveyor,
8. Coolant Tank,
9. Coolant Pump - 6 bars,
